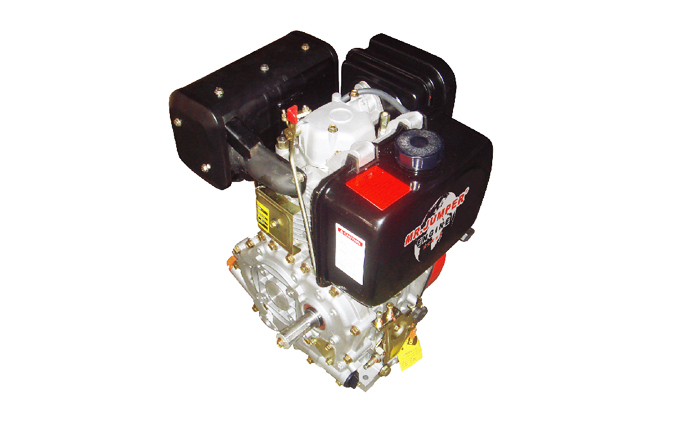

Mr.JUMPER RO-178FS/186FS Diesel Engine(HALF SPEED)
    • Mr.JUMPER RO-178FS/186FS Diesel Engine(HALF SPEED)
    • Mr.JUMPER RO-178FS/186FS Diesel Engine(HALF SPEED)
Product Details

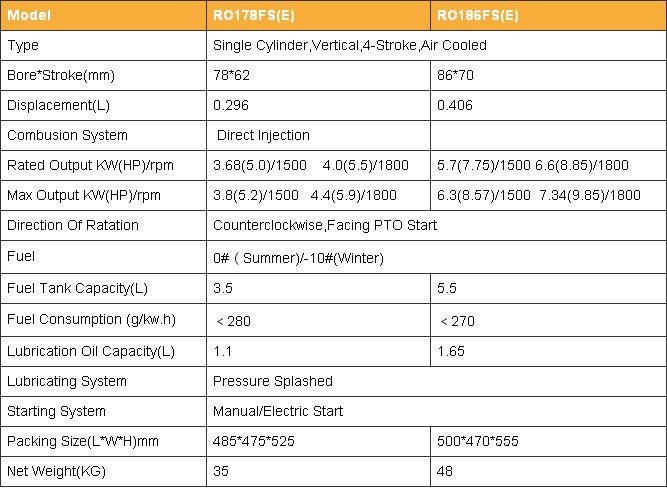

DIESEL ENGINE

ModelRO178FS(E)RO186FS(E)
TypeSingle Cylinder,Vertical,4-Stroke,Air Cooled
Bore*Stroke(mm)78*6286*70
Displacement(L)0.2960.406
Combusion System Direct Injection
Rated Output KW(HP)/rpm3.68(5.0)/1500    4.0(5.5)/18005.7(7.75)/1500 6.6(8.85)/1800
Max Output KW(HP)/rpm3.8(5.2)/1500   4.4(5.9)/18006.3(8.57)/1500  7.34(9.85)/1800
Direction Of RatationCounterclockwise,Facing PTO Start
Fuel0#(Summer)/-10#(Winter)
Fuel Tank Capacity(L)3.55.5
Fuel Consumption (g/kw.h)<280<270
Lubrication Oil Capacity(L)1.11.65
Lubricating SystemPressure Splashed
Starting SystemManual/Electric Start
Packing Size(L*W*H)mm485*475*525500*470*555
Net Weight(KG)3548

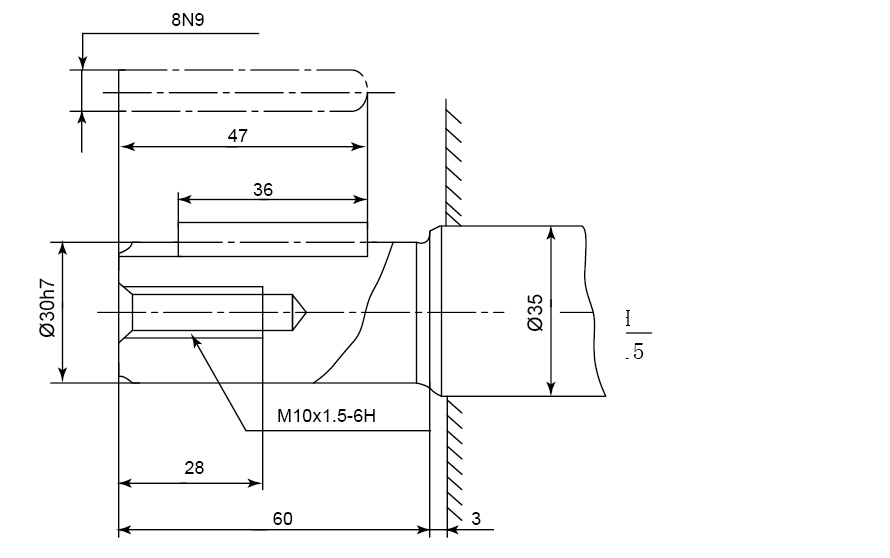

RO186    FS                                    Camshaft PTO                          Keyway Shaft

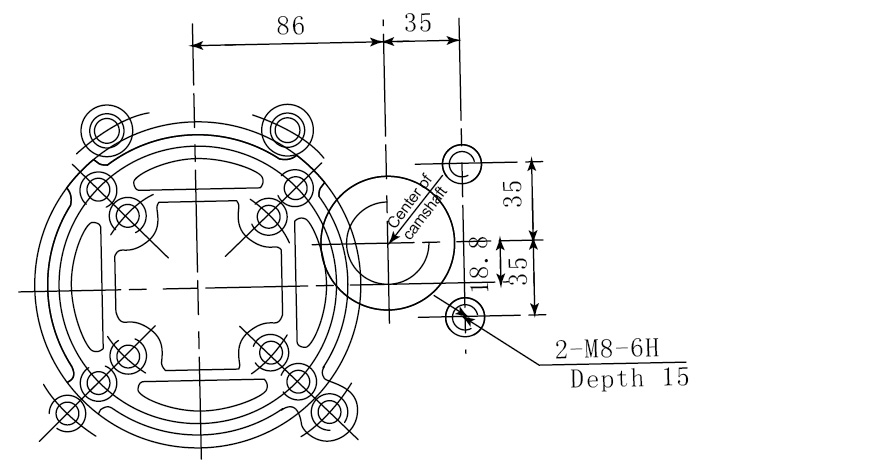

RO186    FS                         PTO Flanges                                      Camshaft PTO
