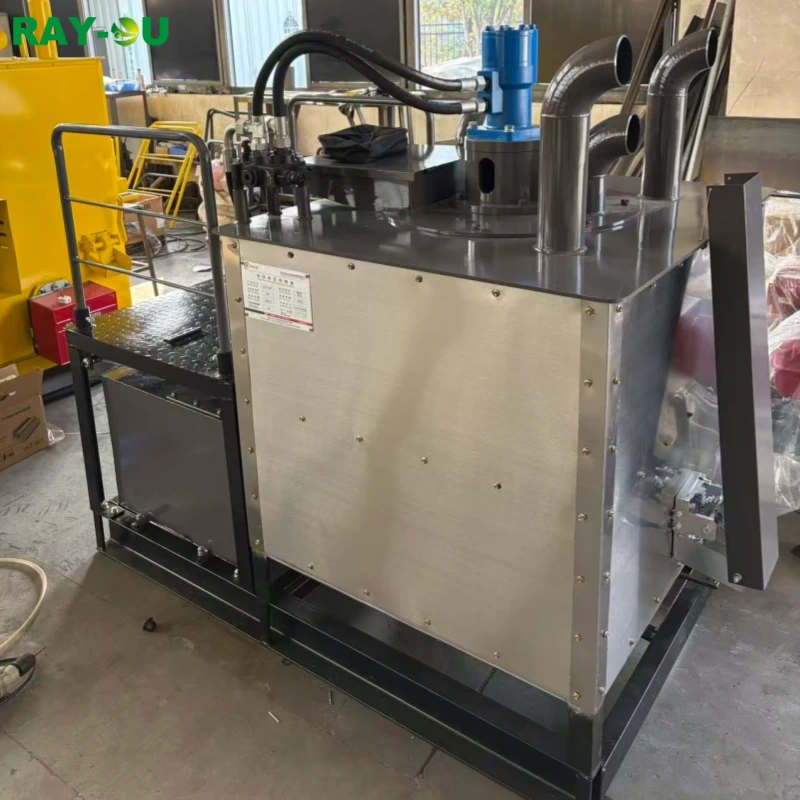

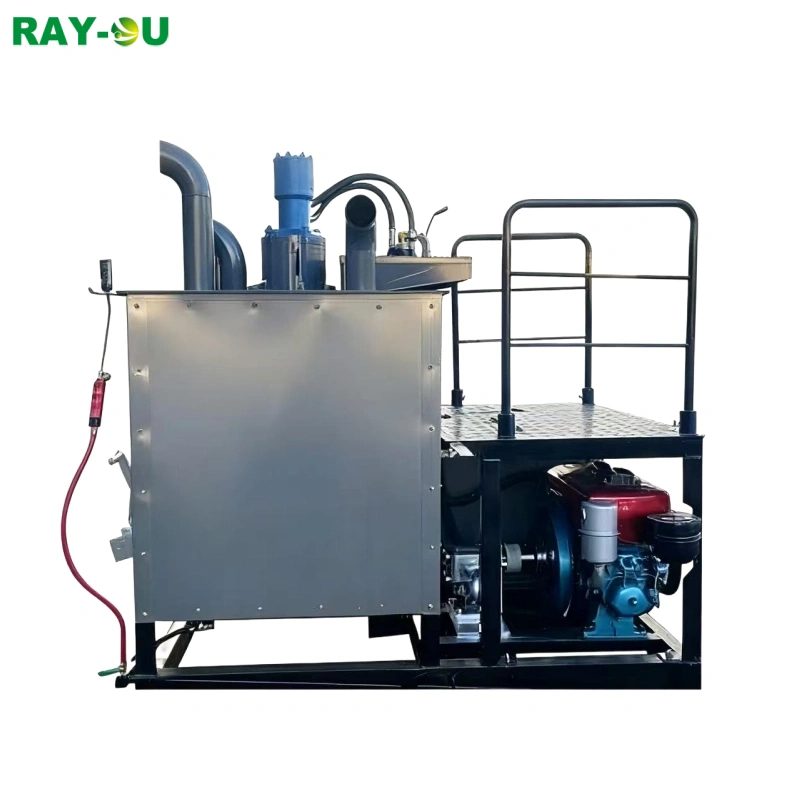

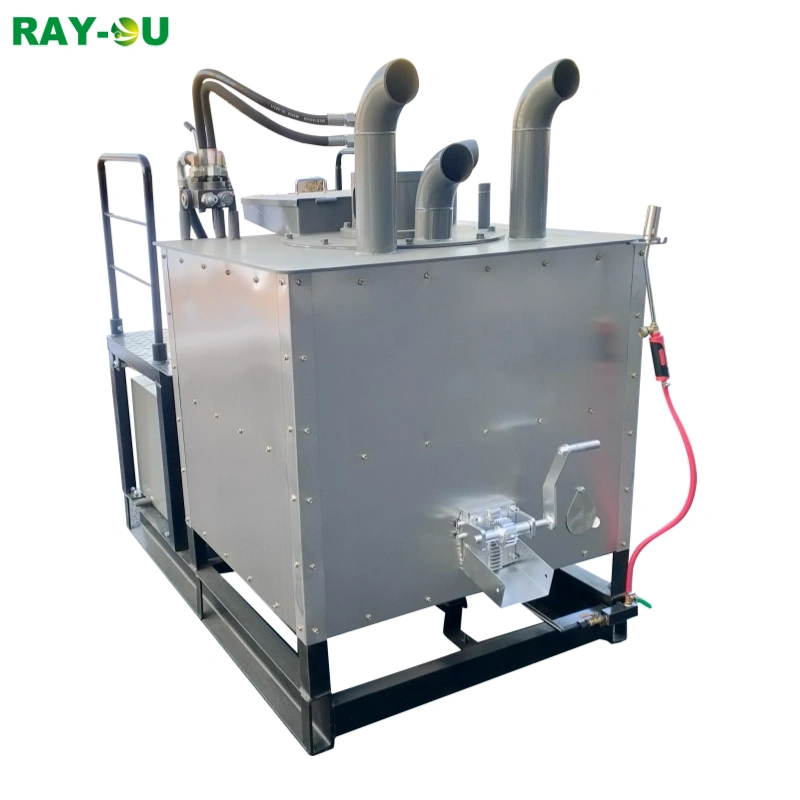

Single tank hydraulic thermoplastic preheater(LPG), also equipped with a hydraulic stirring device and safety protection, features a compact capacity and size suitable for road marking applications in factories, communities, and township roads.
Diesel engine | Electric start water-cooled diesel engine(Changchai,China) |
Engine power | 12HP |
Heating stove | LPG direct-injection stove |
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection |
External structure | Frame-type construction with 1.2mm stainless steel outer shell |
Internal structure | The enclosed combustion chamber is equipped with a thermal insulation layer |
Paint tank | Suspended installation |
Tank bottom material | 8mm high-carbon alloy steel |
Paint tank capacity | 600kg |
Hydraulic oil tank | 50L, please add No. 46 anti-wear hydraulic oil |
Dimension (LWH) | 1010x1800x1700mm |
Net weight | 500kg |
