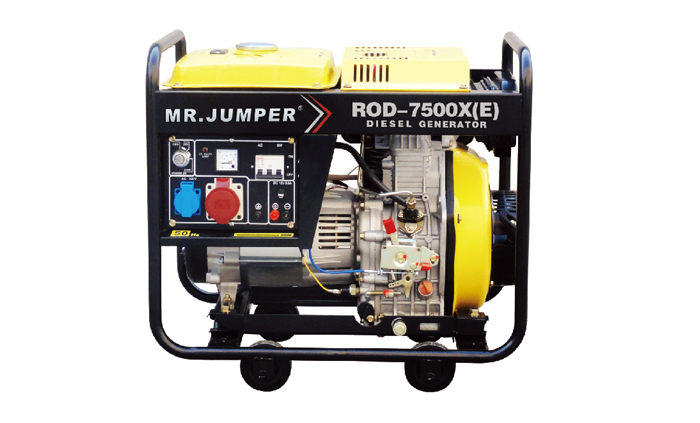

ROD-7500X(E)
    • ROD-7500X(E)
Product Details

Silent Diesel Generator Optional:

□Three Phase   □Hour Counter   □Remote Control

□ATS   □Digital Panel

Battery Optional:

 □12v~22Ah    □12v~30Ah   □12v~36Ah


DIESEL GENERATOR-OPEN FRAME TYPE

Model  ROD-7500X(E)
Rated frequency(Hz) 50/60
Rated Voltage(V) 220,230,240,110/220,115/230,120/240,230/380
Rated output power(KVA) 5.0    5.5
Max output power(KVA)6.25   6.87
Rated rotation speed(rpm) 3000   3600
Power factor cos 1/0.8
Phase number Single  Phase
Excitation transistorizedAVR Self-excitation brush
Structure type Open Frame
Fuel consumption(g/kw.h) 340
Fuel tank capacity(L) 12.5
Continuous runing time(hr)6.5
Noise level 75-79
Starting system X:recoil starter;XE:electric starter
Fuel type 0#(summer),-10#(winter),-35#(chill cold)diesel oil
Lube SAE10W30(Above CD Grade)
Engine model RO188F(E)
Engine type 1-Cylinder,4-stroke,air clooled,vertical,diesel engine
Borexstroke 88*75
Displacement  456
Compression ratio 19:01
Rated power(kw)/(rpm)6.6/3000    7.5/3600
Net weight(kg)  X:98    XE:102
Overall dimension  720*485*630
Optional standard  ATS    REMOTE CONTROL   THREE PHASE     WHEEL AND HANDLE
