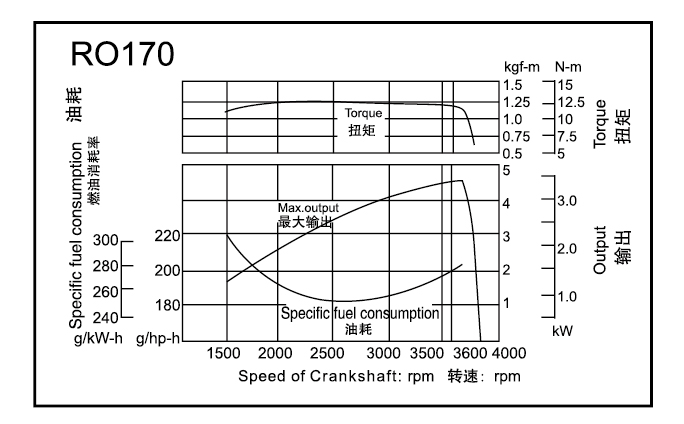

Performance Curves
DIESEL ENGINE

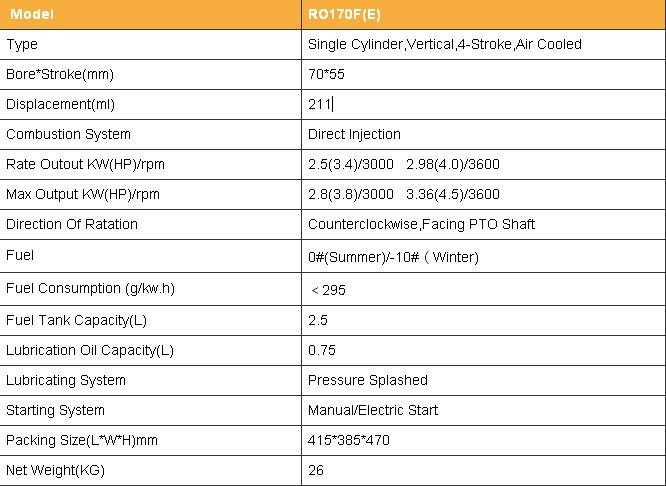

| Model | RO170F(E) |
| Type | Single Cylinder,Vertical,4-Stroke,Air Cooled |
| Bore*Stroke(mm) | 70*55 |
| Displacement(ml) | 211 |
| Combustion System | Direct Injection |
| Rate Outout KW(HP)/rpm | 2.5(3.4)/3000 2.98(4.0)/3600 |
| Max Output KW(HP)/rpm | 2.8(3.8)/3000 3.36(4.5)/3600 |
| Direction Of Ratation | Counterclockwise,Facing PTO Shaft |
| Fuel | 0#(Summer)/-10#（Winter) |
| Fuel Consumption (g/kw.h) | ＜295 |
| Fuel Tank Capacity(L) | 2.5 |
| Lubrication Oil Capacity(L) | 0.75 |
| Lubricating System | Pressure Splashed |
| Starting System | Manual/Electric Start |
| Packing Size(L*W*H)mm | 415*385*470 |
| Net Weight(KG) | 26 |
Application code：
unit:mm
RO170 F1/F2 Crankshaft PTO Keyway Shaft
RO170 F1/F2 Crankshaft PTO Thread Shaft

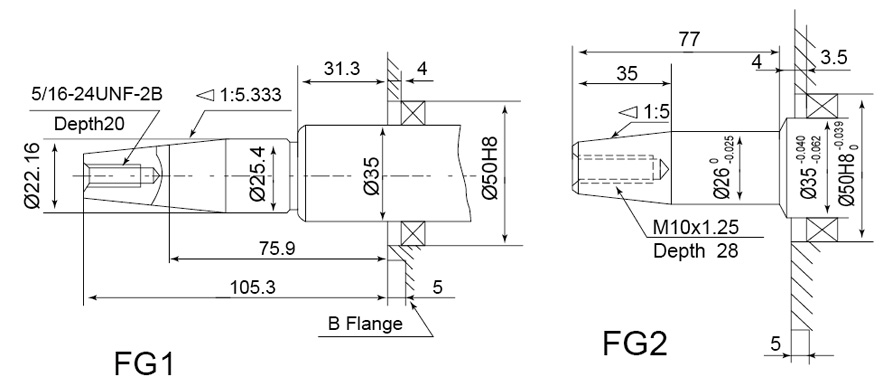

RO170 FG1/FG2 Crankshaft PTO Taper Shaft
