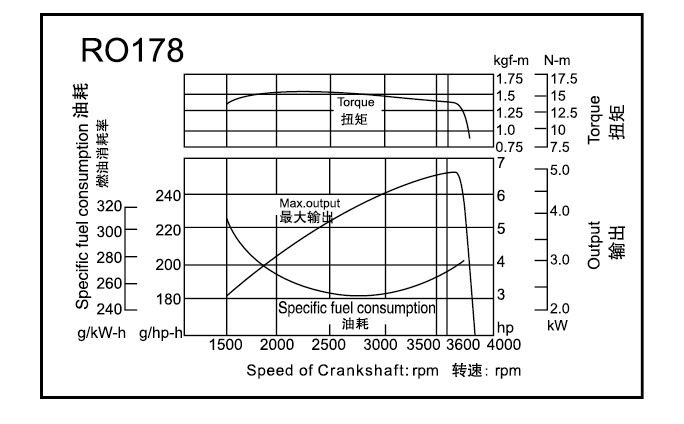

Performance Curves

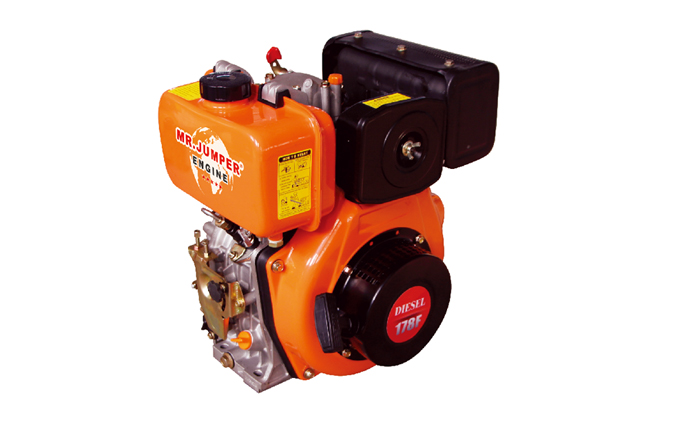

DIESEL ENGINE

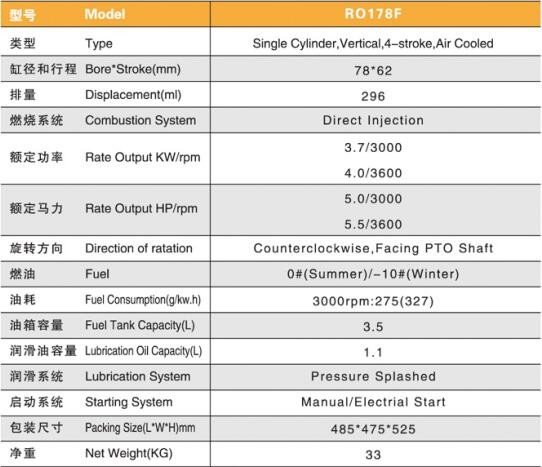

| Model | RO178F(E) |
| Type | Single Cylinder,Vertical,4-Stroke,Air Cooled |
| Bore*Stroke(mm) | 78*62 |
| Displacement(ml) | 296 |
| Combustion System | Direct Injection |
| Rate Outout KW(HP)/rpm | 3.68(5.0)/3000 4.0(5.5)/3600 |
| Max Output KW(HP)/rpm | 3.8(5.2)/3000 4.4(5.9)/3600 |
| Direction Of Ratation | Counterclockwise,Facing PTO Shaft |
| Fuel | 0#(Summer)/-10#（Winter) |
| Fuel Consumption (g/kw.h) | ＜280 |
| Fuel Tank Capacity(L) | 3.5 |
| Lubrication Oil Capacity(L) | 1.1 |
| Lubricating System | Pressure Splashed |
| Starting System | Manual/Electric Start |
| Packing Size(L*W*H)mm | 485*475*525 |
| Net Weight(KG) | 35 |
Application code：
unit:mm

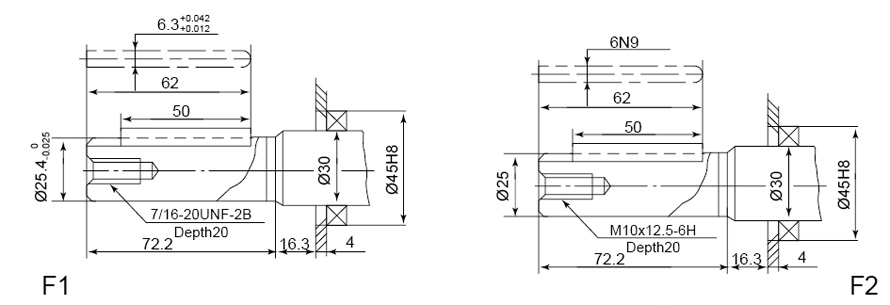

RO178 F1/F2 Crankshaft PTO Keyway Shaft

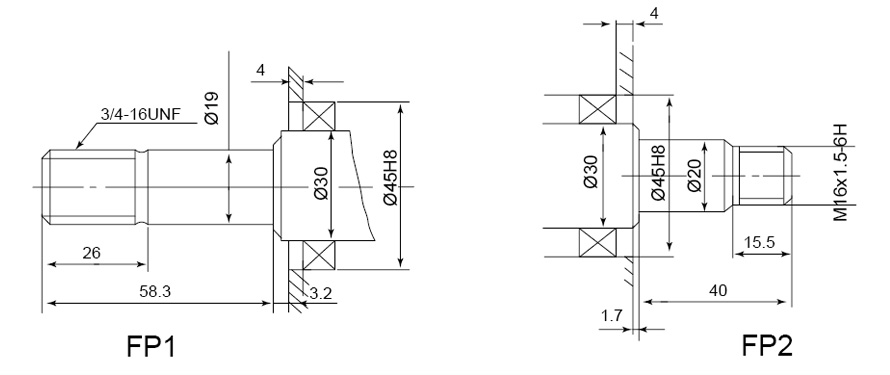

RO178 F1/F2 Crankshaft PTO Thread Shaft

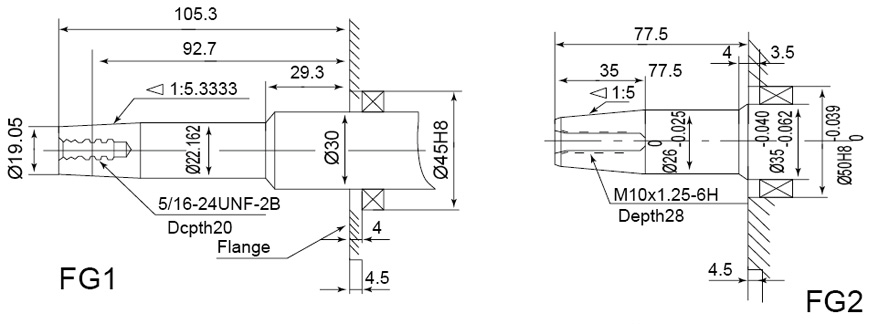

RO178 FG1/FG2 Crankshaft PTO Taper Shaft

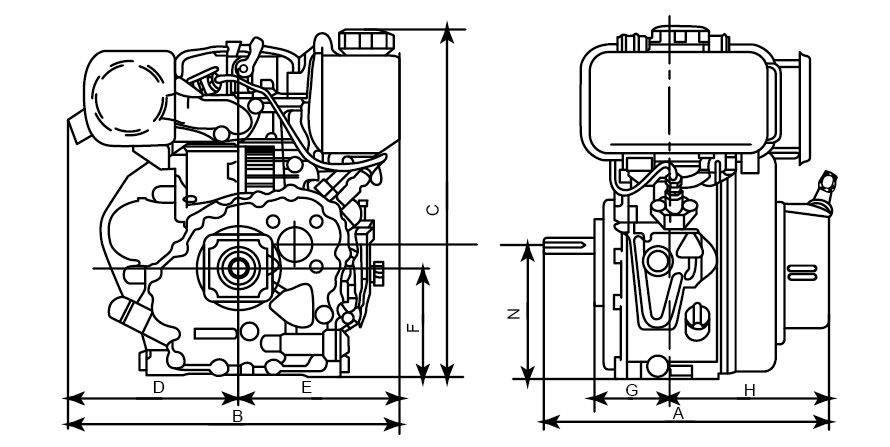

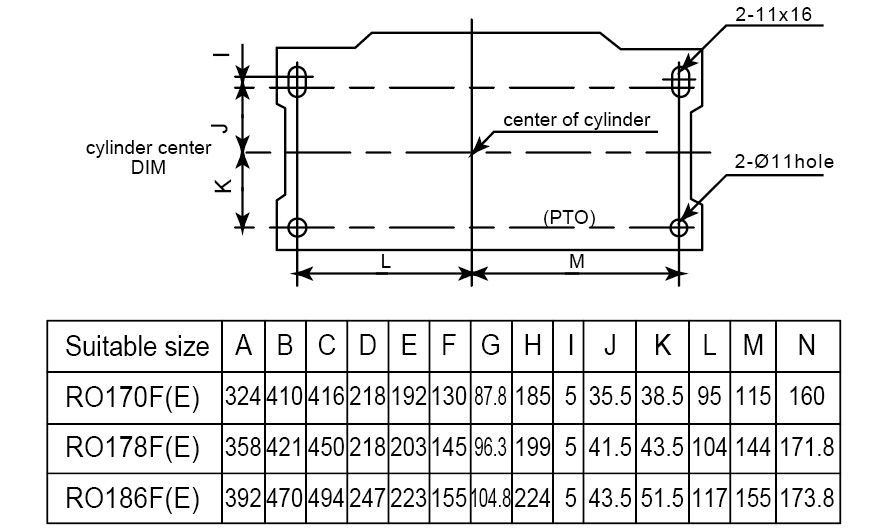

Overall Dimensions And installation unit:mm
Note:All data subject to alteration without notice.

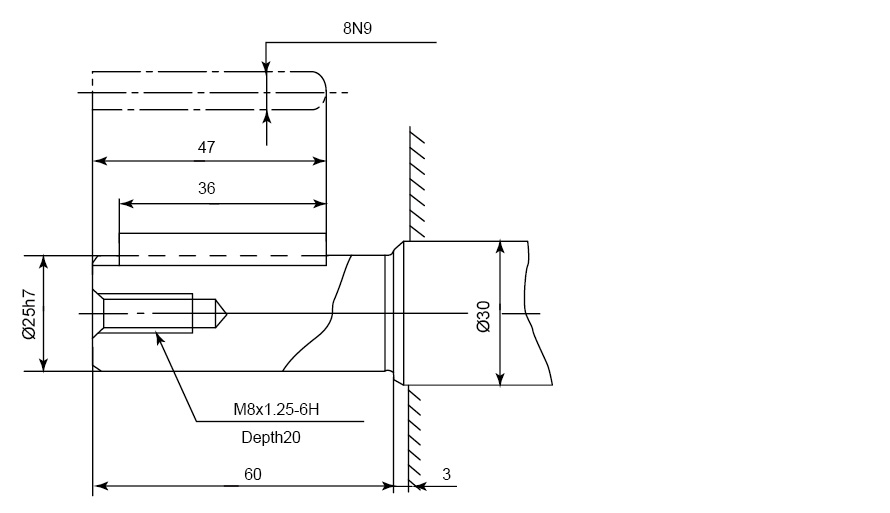

RO178 FS Camshaft PTO Keyway Shaft

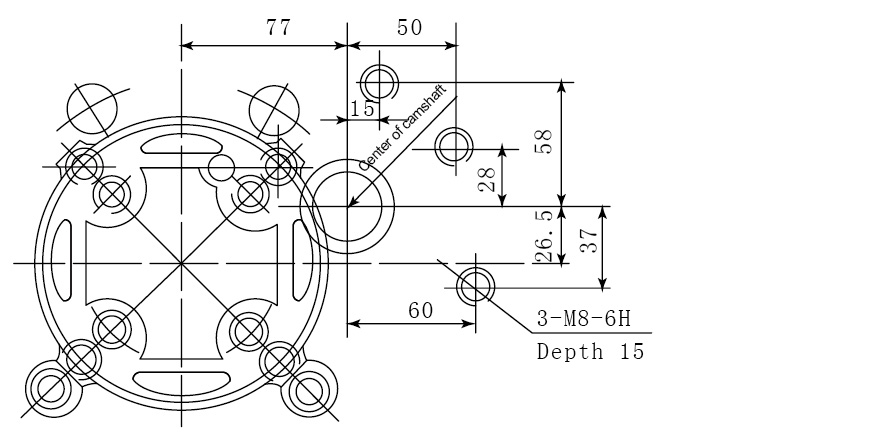

RO178 FS PTO Flanges Camshaft PTO
