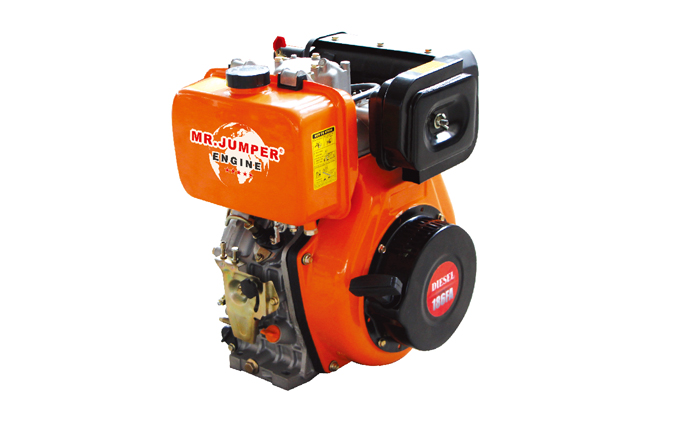

Mr.Jump RO-188F Diesel Engine
    • Mr.Jump RO-188F Diesel Engine
    • Mr.Jump RO-188F Diesel Engine
Product Details

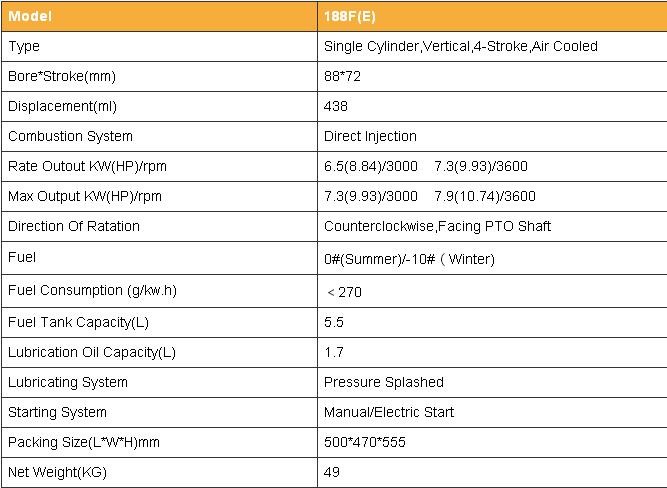

DIESEL ENGINE

Model188F(E)
TypeSingle Cylinder,Vertical,4-Stroke,Air Cooled
Bore*Stroke(mm)88*72
Displacement(ml)438
Combustion SystemDirect Injection
Rate Outout KW(HP)/rpm6.5(8.84)/3000    7.3(9.93)/3600
Max Output KW(HP)/rpm7.3(9.93)/3000    7.9(10.74)/3600
Direction Of RatationCounterclockwise,Facing PTO Shaft
Fuel0#(Summer)/-10#(Winter)
Fuel Consumption (g/kw.h)<270
Fuel Tank Capacity(L)5.5
Lubrication Oil Capacity(L)1.7
Lubricating SystemPressure Splashed
Starting SystemManual/Electric Start
Packing Size(L*W*H)mm500*470*555
Net Weight(KG)49
