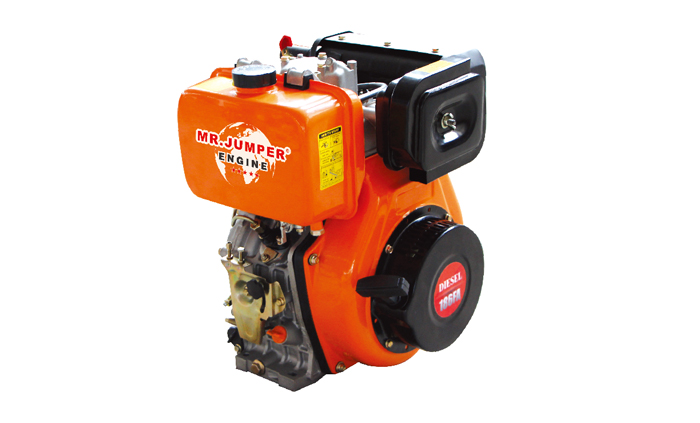

Mr.JUMPER RO-186F/186FA Diesel Engine
    • Mr.JUMPER RO-186F/186FA Diesel Engine
    • Mr.JUMPER RO-186F/186FA Diesel Engine
    • Mr.JUMPER RO-186F/186FA Diesel Engine
Product Details

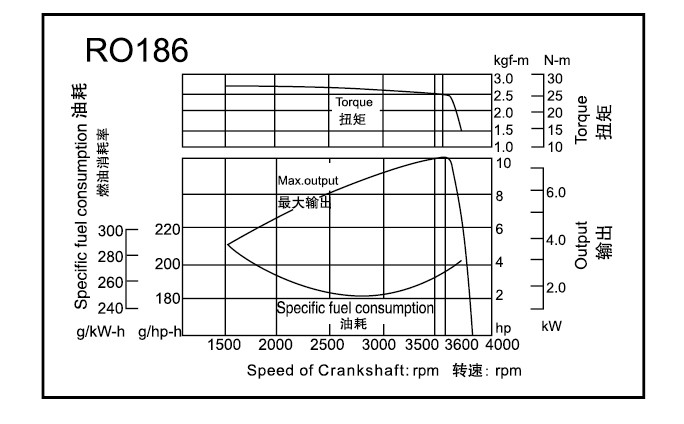

Performance  Curves

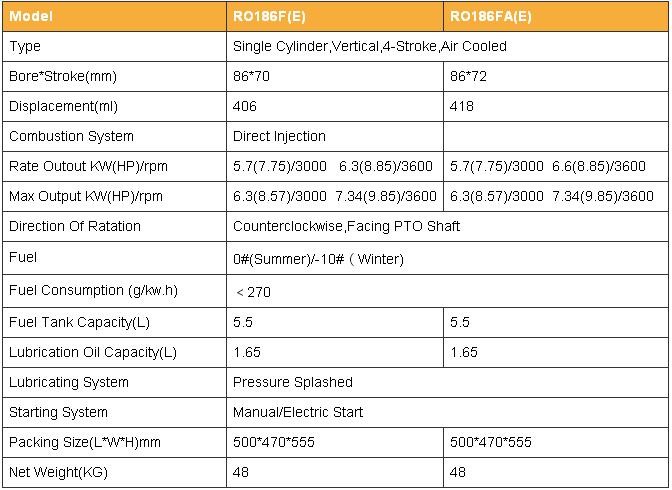

DIESEL ENGINE


ModelRO186F(E)RO186FA(E)
TypeSingle Cylinder,Vertical,4-Stroke,Air Cooled
Bore*Stroke(mm)86*7086*72
Displacement(ml)406418
Combustion SystemDirect Injection
Rate Outout KW(HP)/rpm5.7(7.75)/3000   6.3(8.85)/36005.7(7.75)/3000  6.6(8.85)/3600
Max Output KW(HP)/rpm6.3(8.57)/3000  7.34(9.85)/36006.3(8.57)/3000  7.34(9.85)/3600
Direction Of RatationCounterclockwise,Facing PTO Shaft
Fuel0#(Summer)/-10#(Winter)
Fuel Consumption (g/kw.h)<270
Fuel Tank Capacity(L)5.55.5
Lubrication Oil Capacity(L)1.651.65
Lubricating SystemPressure Splashed
Starting SystemManual/Electric Start
Packing Size(L*W*H)mm500*470*555500*470*555
Net Weight(KG)4848



Application code:


 unit:mm

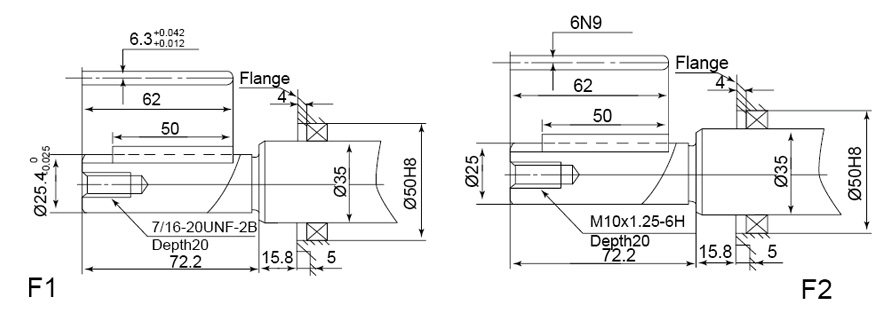

RO186    F1/F2                                                  Crankshaft PTO                                        Keyway Shaft



RO186    F1/F2                                                        Crankshaft PTO                                                               Thread Shaft

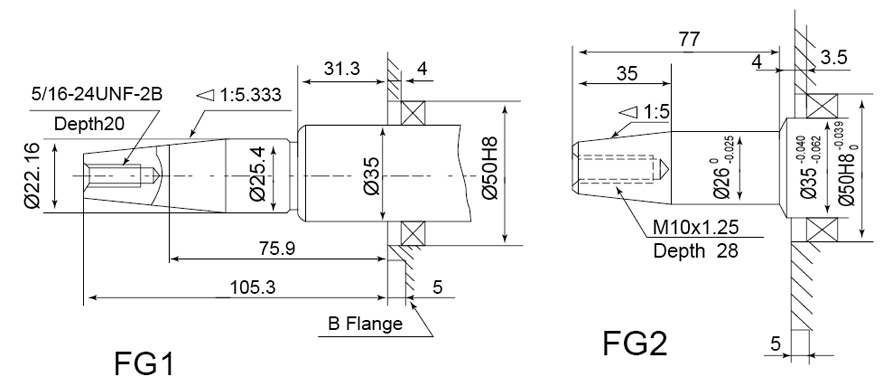

RO186    FG1/FG2                                                        Crankshaft PTO                                                                Taper Shaft
