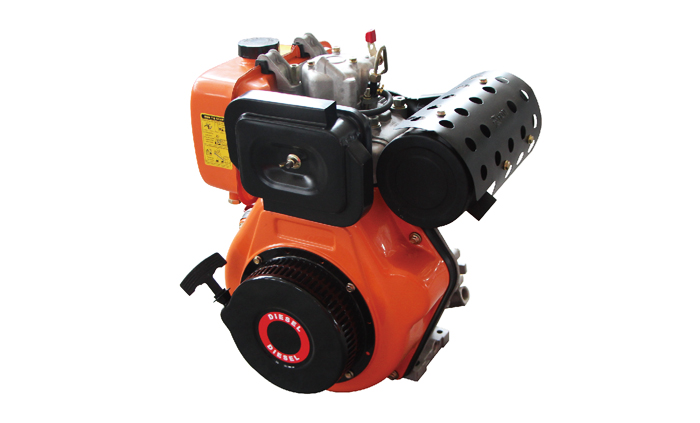

Mr.Jump RO-192F Diesel Engine
    • Mr.Jump RO-192F Diesel Engine
    • Mr.Jump RO-192F Diesel Engine
Product Details

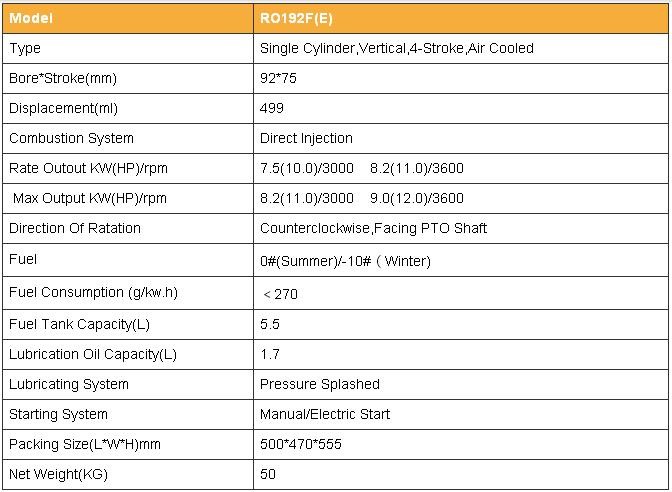

DIESEL ENGINE

ModelRO192F(E)
TypeSingle Cylinder,Vertical,4-Stroke,Air Cooled
Bore*Stroke(mm)92*75
Displacement(ml)499
Combustion SystemDirect Injection
Rate Outout KW(HP)/rpm7.5(10.0)/3000    8.2(11.0)/3600
 Max Output KW(HP)/rpm8.2(11.0)/3000    9.0(12.0)/3600
Direction Of RatationCounterclockwise,Facing PTO Shaft
Fuel0#(Summer)/-10#(Winter)
Fuel Consumption (g/kw.h)<270
Fuel Tank Capacity(L)5.5
Lubrication Oil Capacity(L)1.7
Lubricating SystemPressure Splashed
Starting SystemManual/Electric Start
Packing Size(L*W*H)mm500*470*555
Net Weight(KG)50
