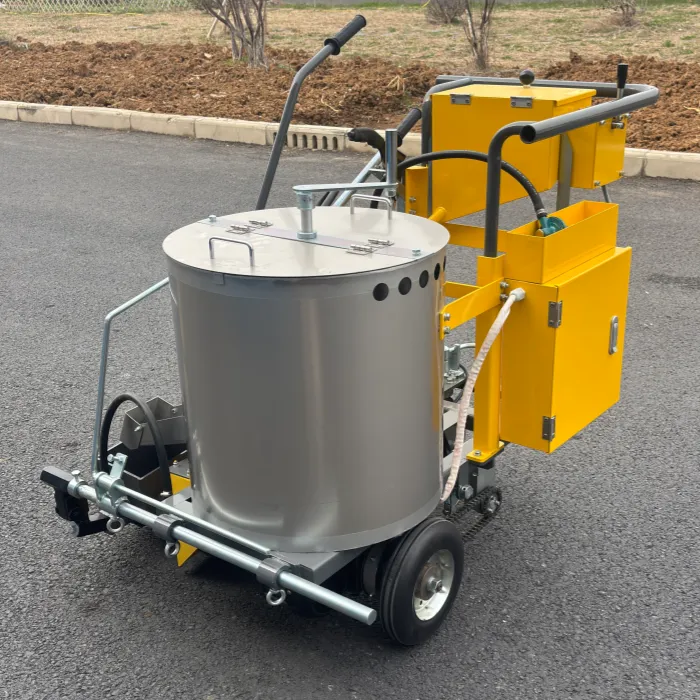

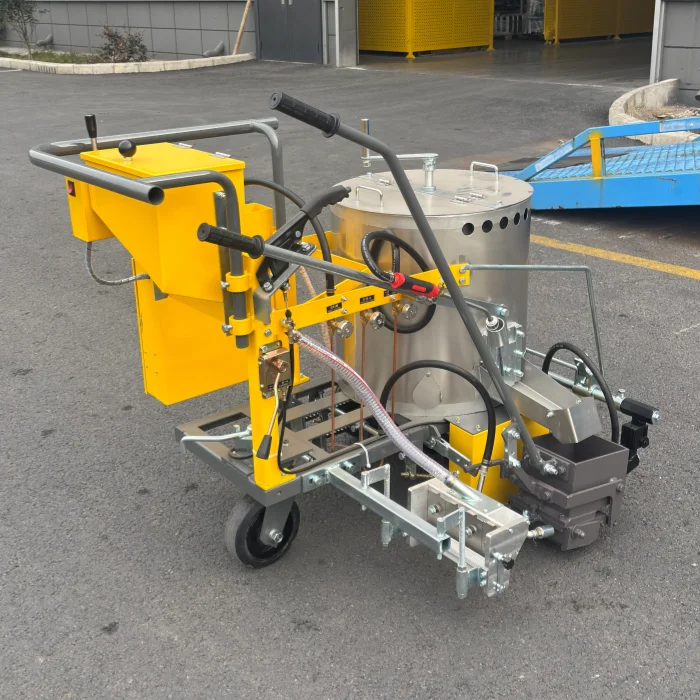

Electric motor-driven hot-melt road marking machine requires no manual pushing, making it convenient for use on sloped surfaces. Powered by a portable lithium battery, it requires a hot-melt kettle for operation. Featuring a simple structure for easy maintenance.
Paint Bucket | Capacity 100kg/50L, double-walled stainless steel construction, equipped with manual agitator. |
Glass Bead Bin Capacity | 15kg |
Fuel | Gas |
Driving Method | Electric motor drive |
Driving speed | Forward 10km/h, Reverse 6km/h, Climbing 15° incline |
Driving controll | Three-speed control: forward, stop, and reverse, with infinitely variable speed |
Battery | 48VDC/12Ah lithium battery, 8-hour runtime |
Chassis | Dual-wheel differential, dual drum brakes |
Marking bucket | Scraper-Type Line Marking Bucket |
Floor blade | Alloy-embedded floor blade |
Marking width | 50/100/150/200/250/300/400/450mm |
Glass bead spreader | Plug-in spreader with adjustable width and density |
Wheels | Metal hubs, heat-resistant rubber tires, rear wheels equipped with straight-line positioning devices |
Size | 1250 × 900 × 1000 mm |
Net Weight | 140 kg |
