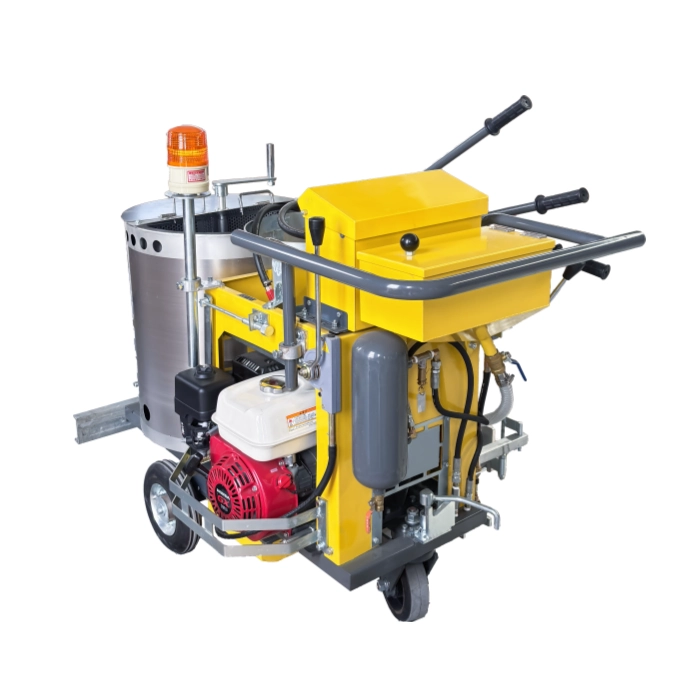

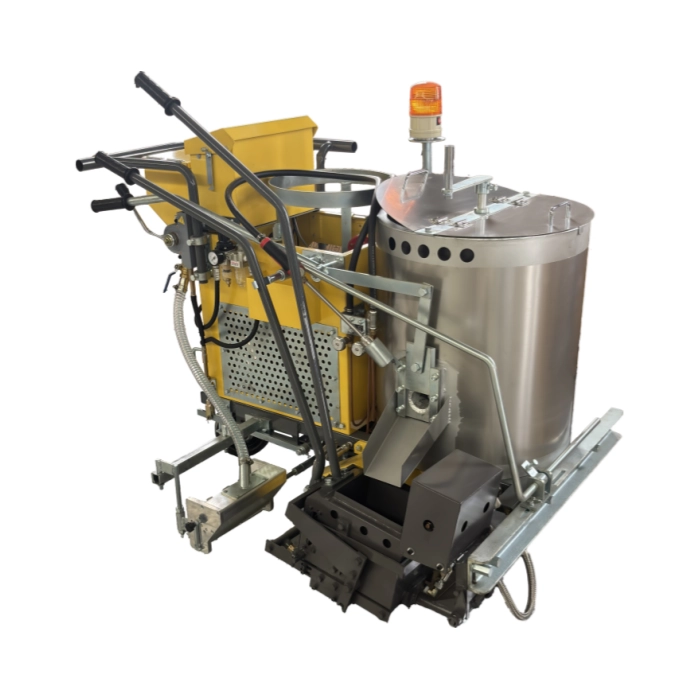

A machine for applying raised thermoplastic road markings, equipped with an internal gasoline engine that eliminates the need for manual pushing. An onboard computer is used to set the length and spacing of the raised sections, typically employed for installing deceleration lines. It requires use with a hot-melt kettle.
Paint Bucket | Capacity 120kg, double-layer stainless steel construction, equipped with manual agitator. |
Glass Bead Hopper Capacity | 15kg |
Fuel | Gas |
Engine | Honda GX160 Gasoline Engine (5.5HP) |
Drive System | Hydraulic Travel Motor with Continuously Variable Transmission (CVT |
Drive Speed | Forward 10km/h, Reverse 6km/h, Gradeability 15° |
Ridge Height | 0-10mm |
Ridge Marking Setup | Onboard LCD computer |
Marking bucket | Scraper-Type Line Marking Bucket |
Floor blade | Alloy-embedded floor blade |
Marking width | 50/100/150/200/250/300/400/450mm |
Glass Bead Spreader | Plug-in spreader with adjustable width and density |
Wheels | Metal hubs with heat-resistant rubber tires; rear wheels equipped with straight-line positioners |
Size | 1350 × 1100 × 1200 mm |
Net Weight | 260 kg |
