Silent Diesel Generator Optional：
□Three Phase □Hour Counter □Remote Control
□ATS □Digital Panel □Big Fuel Tank □Pre-heater
Battery Optional：
□12v~22Ah □12v~30Ah □12v~36Ah

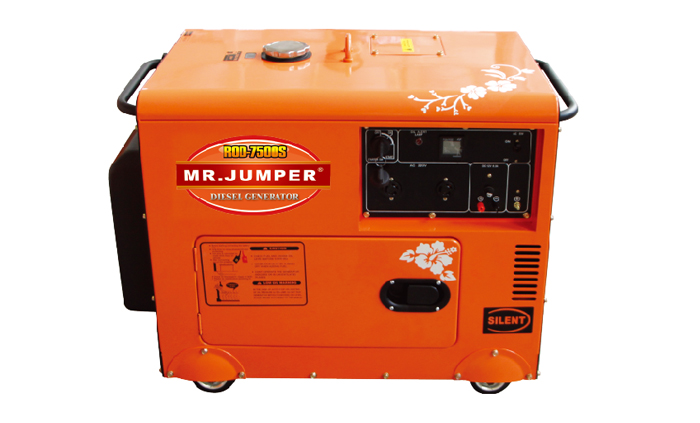

DIESEL GENERATOR-SILENT TYPE
| Model | ROD-7500S |
| Rated frequency(Hz) | 50 60 |
| Rated Voltage(V) | 220,230,240,220/110,230/115,240/120,220/380,230/400,240/415 |
| Rated output power(KVA) | 5.0(6.25) 5.5(6.87) |
| Ration rotation speed(rpm) | 3000 3600 |
| DC output | 12V 8.3A |
| Power factor cos c | 1/0.8 |
| Phase number | Single phase |
| Excitation Mode | AVR self-excitation brush |
| Noise level | 70-74 |
| Structure model | low noise |
| Engine model | RO188FE |
| Engine type | 1-Cylinder,4-stroke,air clooled,direct injection,diesel engine |
| Displacement | 456 |
| Compression ratio | 19:01 |
| Rated power(kw/rpm) | 6.9(9.4)/3600 |
| Starting system | electric starting |
| Rotation direction | clockwise |
| Fuel type | 0#(summer),-10#(winter)diesel oil |
| Low oil pressure alarm system | with |
| Overall dimension | 960*550*700 |
| Net weight(kg) | 160 |
| Optional standard | ATS REMOTE CONTROL THREE PHASE DOUBLE VOTAGE DIGITAL PANEL |
| FLIP COVER |
