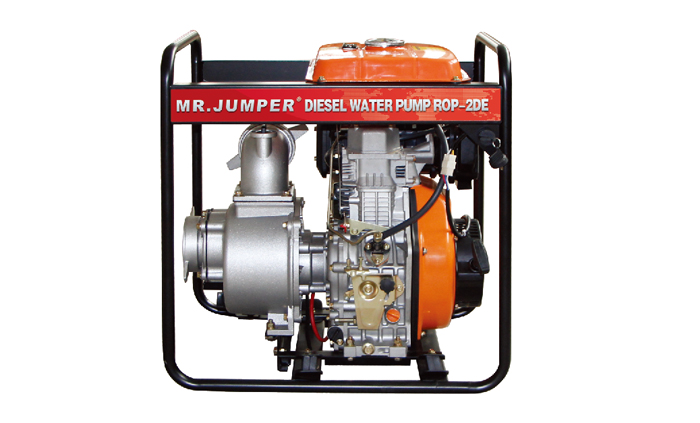

MR.JUMPER ROP-2D(E) WATER PUMP
    • MR.JUMPER ROP-2D(E) WATER PUMP
    • MR.JUMPER ROP-2D(E) WATER PUMP
    • MR.JUMPER ROP-2D(E) WATER PUMP
Product Details

DIESEL WATER PUMP

Diesel Water Pump Optional: □Big Fuel Tank

Battery Optional: □12v~22Ah  □12v~30Ah   □12v~36Ah


DIESEL ENGINE

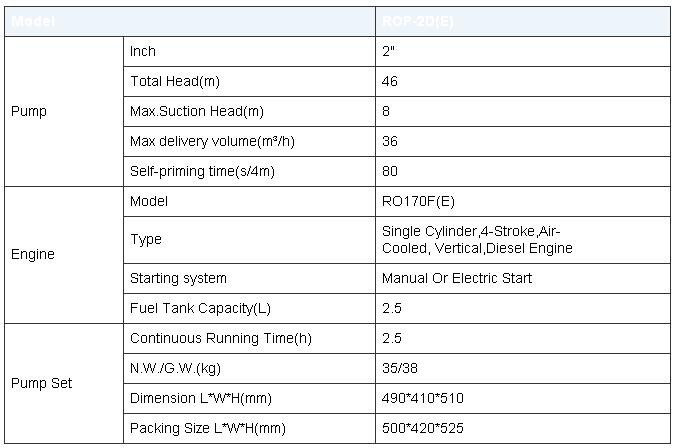

ModelROP-2D(E)
PumpInch 2"
Total Head(m)46
Max.Suction Head(m)8
Max delivery volume(m³/h)36
Self-priming time(s/4m)80
EngineModelRO170F(E)
TypeSingle Cylinder,4-Stroke,Air-Cooled, Vertical,Diesel Engine
Starting systemManual Or Electric Start
Fuel Tank Capacity(L)2.5
Pump SetContinuous Running Time(h)2.5
N.W./G.W.(kg)35/38
Dimension L*W*H(mm)490*410*510
Packing Size L*W*H(mm)500*420*525
